Automatic capture of temperature deviation in a panel for maintenance labors, to achieve both labor-saving and significant risk mitigation of abnormal stop
Issues on site
Parts to check are increasing as devices and wires in a panel increase for high-functioned facilities and equipment. On the other hand, maintenance frequency is decreasing due to shortage of the maintenance engineers, resulting in a higher risk of accident.
New way of maintenance
・Covering the skilled maintenance engineers, the thermal condition monitoring device constantly monitors temperatures of the whole panel.
・Automated collection and analysis of the temperature data enables to identify a device failure automatically.
Measurement applications using K6PM-TH
Visualizing the temperature in a panel accurately without opening the panel door
Optimal installation regardless of the locations thanks to the wide viewing angle and the compact body
Wide viewing angle lens
Compact
Infrared temperature sensor (Special thermal Imaging sensor) K6PM-THS
Environmental resistance
Assuring a normal operation under a harsh environment
Easy mount
Mount with a magnet or a commercial attachment on the backside of the door is available.
Contributing to an early detection of abnormality by our proprietary algorithm
[Features 1] Predicting the temperature rise deviations, and notifying the dangerous level of abnormal exothermic
[Features 2] Enable to predict an abnormal exothermic of the devices in an environment where the ambient temperature significantly varies

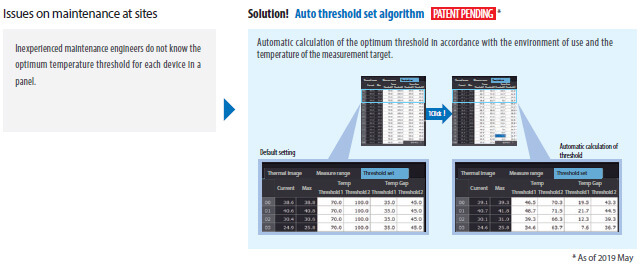

[Features 3] Auto setting of the optimum threshold for the complicated temperature distribution in a panel
System configuration and software tool
“Thermal Condition Monitoring Tool” enables the setting and logging of K6PM-TH. K6PM-TH linked with a PC via an Ethernet cable enables you to recognize the temperature status in panels and warning alarms at one view on a remote PC.
With Thermal Condition Monitoring Tool you can…
Constantly and remotely visualize the temperature status of the panel in multiple points where K6PM-TH are installed
Quickly know the analyzing results of the measurements at one view
